• All in One Solution
  • Built in networked media player
  • Built in Wi-Fi & LAN connections
  • Menu Board Template library
  • Create Custom Menu Boards
  • Narrow Bezel
  • Multi-Screen Synchronisation
  • Designed for constant use 24/7
  • Portrait or Landscape Orientation

Includes

  • Free Scheduling Software
  • Free Delivery
  • 3 Year Commercial Warranty

Networked Version Available:

Networked Digital Menu Board
Remote Menu Changes

Remotely update your menu boards from any PC with an internet connection using our cloud based Content Management System (CMS.) The digital menu boards include 1 year’s free access to the cloud CMS! (After year 1 you will need to buy an additional 1 year, 3 year or lifetime subscription per screen.)

Simple ‘Plug & Play’ Content Updates

With the built in Android media player if you don’t have an internet connection you can still easily update your content by loading your images and videos onto a USB stick, simply plug the USB into the display, let the media files copy across and then remove the USB stick and the content will just run in a continuous loop. No additional hardware or cables are needed.

Ready to use Menu Templates

With access to a range of pre-designed menu templates it’s easy to add your own logos, pictures, videos, websites and customise font colours and sizes to create your own professionally branded digital menus.

Easily Work with Different File Formats

The networked cloud based CMS supports multiple file formats to make life as easy as possible. Not only does the system support standard file types for pictures (JPG, GIF, BMP, PNG), videos (MPEG, AVI, MP4, RM, RMVB, TS) & audio (MP3, WMA) but you can also display ordinary office files (Word, PowerPoint, Excel) as well as Adobe PDFs. Websites with HTML5 compatibility can also be shown on screen along with social media & RSS feeds giving you total flexibility over your digital menus.

Narrow Bezel

These digital menu board screens are built with a narrow bezel design meaning the edges of the screens are slim, unobtrusive & great when putting screens next to each other.

Multi-screen Synchronisation

With built in video processing so long as all the screens are on the same network then multiple screens can be positioned next to each to create one large menu board.

Designed for Public Spaces

These screens are manufactured with a commercial grade LCD panel with an LED backlight that is suitable for constant use 24/7 & also offers a wide viewing angle in both landscape and portrait orientation.

Includes Free Power Timer

Improve your environmental efficiency & reduce costs with the eco-friendly power timer that allows you to assign daily or weekly on and off times for your screen to ensure that it is only in use when it needs to be.

Control Screens Remotely

With the cloud based CMS you can remotely manage the major screen settings for any screen on your digital signage network, such as controlling on/off times, brightness and contrast levels.

Scrolling text feature

Help get your message across or highlight any menu promotions with a scrolling text message that runs along the bottom of the screen. Customise font size, colour, speed and direction of scrolling to suit your restaurants.

Add Live Widgets & Content

Keep content looking fresh & live by displaying the local weather forecast or perhaps showing the current date and time.

Manage Different Users

With the cloud based CMS you are always in control and can set user permissions for different members of staff so perhaps only certain people can update particular screens. With the user log function you can also easily monitor who is doing what and see how effective your current marketing campaign has been.

Variety of Mounting Options

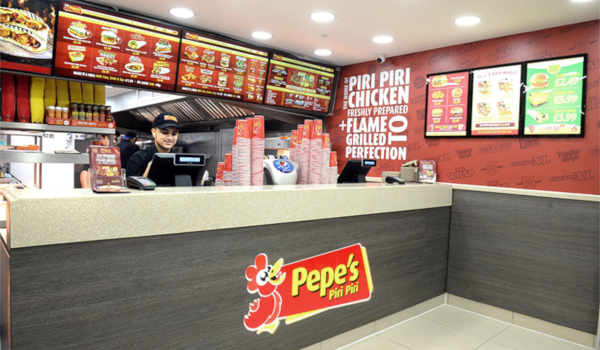

A variety of mounting brackets are available upon request; ceiling mounts, wall mounts or floor standing.

Specs & Prices
SCREEN SIZE: 32″ 43″ 50″ 55″
Product code DMB32N DMB43N DMB50N DMB55N
Panel Resolution 1920×1080  1920×1080  1920×1080  1920×1080
Display Area (mm) 703.4×397.9 945.8×534  1073×604  1209.6×680.4
Aspect Ratio 16:9 16:9  16:9  16:9
Unit Size (WxHxD mm) 723.4×422.9×71 963.6×557.9×60.2 1096x632x60  1232×708.9×59.3
Package Size (WxHxD mm) 865x555x210 1065x655x160 1238x760x195  1360x850x230
VESA Holes (mm) 500×200 500×200  500×300/500×200  500×300/500×200
Net Weight (kg) 9  15.1  23.6  28
Gross Weight (kg)  11.55  19  28.5  34.4
Brightness (cd/m2) 450  450  450  450
Colour 16.7M  16.7M  16.7M  16.7M
Viewing Angle 178°  178°  178°  178°
Contrast Ratio 4000:1 4000:1 4000:1  4000:1
Power Consumption (W) 38 55 55 65
Input Voltage  AC110-240V(50Hz-60Hz) AC110-240V(50Hz-60Hz) AC110-240V(50Hz-60Hz) AC110-240V(50Hz-60Hz)
AV Signal Inputs HDMI, VGA, Audio Socket (3.5mm) HDMI, VGA, Audio Socket (3.5mm) HDMI, VGA, Audio Socket (3.5mm) HDMI, VGA, Audio Socket (3.5mm)
Audio  5W, 8Ω (x2) 5W, 8Ω (x2)  5W, 8Ω (x2) 5W, 8Ω (x2)
Internal Memory  6GB  6GB  6GB  6GB
CPU Duel-Core Cortex-A9 @1.6GHz  Duel-Core Cortex-A9 @1.6GHz Duel-Core Cortex-A9 @1.6GHz  Duel-Core Cortex-A9 @1.6GHz
GPU Mali-400 MP4 @400MHz  Mali-400 MP4 @400MHz Mali-400 MP4 @400MHz  Mali-400 MP4 @400MHz
RAM 1GB DDR3  1GB DDR3  1GB DDR3  1GB DDR3
ROM 8GB NAND  8GB NAND  8GB NAND  8GB NAND
LAN 10/100M Ethernet 10/100M Ethernet  10/100M Ethernet  10/100M Ethernet
Wi-Fi 802.11b/g/n  802.11b/g/n  802.11b/g/n  802.11b/g/n
Graphic Engine OpenGL ES 1.1/2.0, OpenVG 1.1 OpenGL ES 1.1/2.0, OpenVG 1.1 OpenGL ES 1.1/2.0, OpenVG 1.1  OpenGL ES 1.1/2.0, OpenVG 1.1
OS Android 4.2.2  Android 4.2.2  Android 4.2.2  Android 4.2.2
Accessories Scheduling Software, Remote Control, Key, User Manual Scheduling Software, Remote Control, Key, User Manual Scheduling Software, Remote Control, Key, User Manual Scheduling Software, Remote Control, Key, User Manual
Spec Sheet

Price (ex VAT)

£473

£671

£775

£1,077

Subscription to CMS One Year 3 Years Lifetime
Cost per screen (ex VAT) £99 £234 £449
ITEM  COST

4G Network Dongle

£99

Ceiling Mount

£POA

Wall Mount

Free

Floor Stand

£POA

Please get in touch to place an order or discuss your requirements

Please get in touch to place an order or discuss your requirements

Please get in touch to place an order or discuss your requirements
